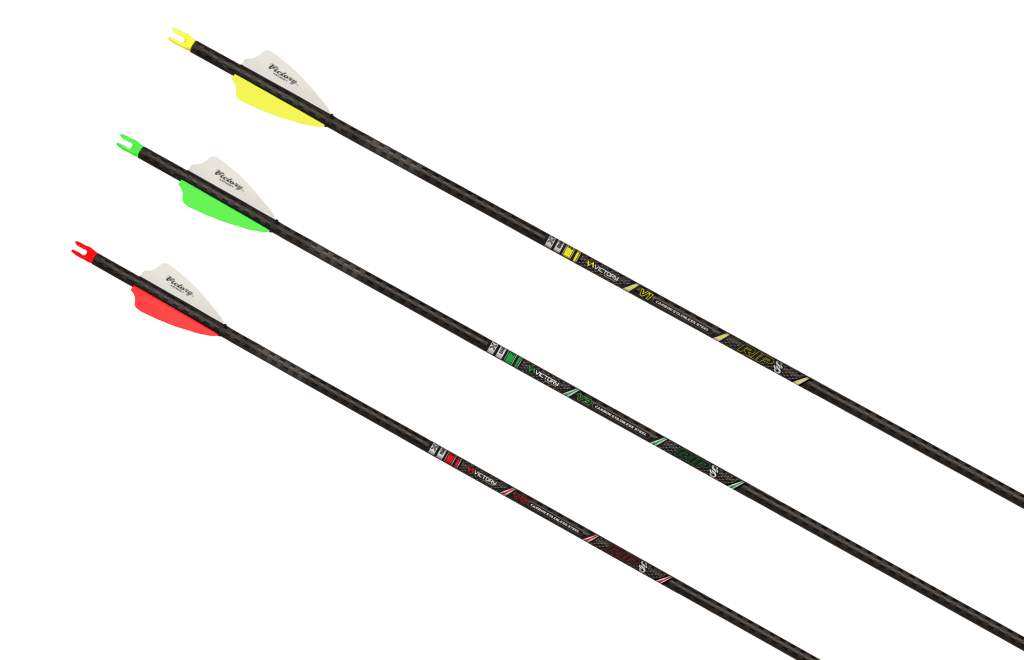

A Bone-Crushing Carbon Fiber/Stainless Steel Hybrid Arrow
Small DIAMETER HUNTING ARROW
The RIP SS™ is the pinnacle of hunting arrow technology, a bone-crushing, small-diameter shaft with stainless steel layers infused into a 3K™ 90° carbon fiber weave. The RIP SS™ is lighter and faster than its predecessor, the Xtorsion™. With higher FOC and the same sledge-hammering momentum, this shaft will punch through anything in its path and is sure to stay straight shot after shot.
ELITE / V1
+/- .001″
GAMER / V3
+/- .003″
SPORT / V6
+/- .006″
| SPINE | GPI | SHAFT LENGTH | SHAFT ID | SHAFT OD |
|---|---|---|---|---|
| 200 | 12.8 | 31.0 | 0.204 | 0.282 |
| 250 | 11.7 | 31.0 | 0.204 | 0.277 |
| 300 | 10.7 | 31.0 | 0.204 | 0.272 |
| 350 | 9.9 | 31.0 | 0.204 | 0.267 |
| 400 | 9.6 | 31.0 | 0.204 | 0.263 |
Arrow Features
The 90° carbon weave pattern is a trademark of Mitsubishi Chemical America, Inc., Sporting Goods Division dba Victory Archery.
SMALL DIAMETER ARROW – 100% carbon fiber construction .204 diameter for maximum speed and penetration with less wind deflection PENETRATION WITH LESS WIND DEFLECTION
ADVANCED 3K™ CARBON WEAVE FOR LESS TORQUE, FASTER RECOVERY OF ARROW FLIGHT, AND TIGHTER UNIFORM SPINE CONSISTENCY
EVERY ARROW DIGITALLY SPINE ALIGNED FOR INCREASED ACCURACY AND SHOT TO SHOT CONSISTENCY
EACH DOZEN WEIGHT MATCHED TO +-0.5 GRAINS FOR PRECISE SHOT CONSISTENCY AND TIGHTER GROUPING
ADVANCED NANO CERAMIC ARROW COATING IMPROVES PENETRATION AND ALLOWS FOR EASY REMOVAL FROM TARGETS
HAND FLETCHED FOR OPTIMUM VANE ADHESION AND ALIGNMENT
Accessories

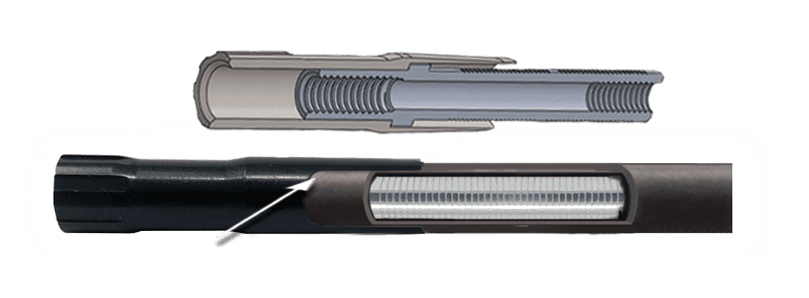

Shok™ TL204 Broadhead Adaptor
Improved impact protection sleeve strengthens arrow tip from fracturing – increasing impact resilience and durability. Patent pending taper lock machining improves strength and concentricity. Shok™ TL adaptor accepts standard 5/16” broadheads with 8-32 thread allowing you to continue using your favorite broadhead for trusted performance.
